TSN.configurator

Design, Automated Configuration and Verification of Time-Sensitive Networks

TSN.configurator™ is a comprehensive tool for designing, verifying, and configuring TSN-compliant devices — ensuring the required timing and reliability QoS

TSN is reshaping the networking landscape. Be ready for it.

TSN ensures reliable, deterministic communication with guaranteed low latency, minimal delay variation, and near-zero data loss.

18 years of experience in network configuration and optimization

TSN.configurator™ leverages the field-proven technologies behind RTaW-Pegase™, the industry-leading network performance evaluation tool for automotive and aerospace TSN networks.

Your TSN configuration service

TSN.configurator automates the configuration of Time-Sensitive Ethernet networks, from routing to advanced features such as scheduling, policing and redundancy.

Correct by construction

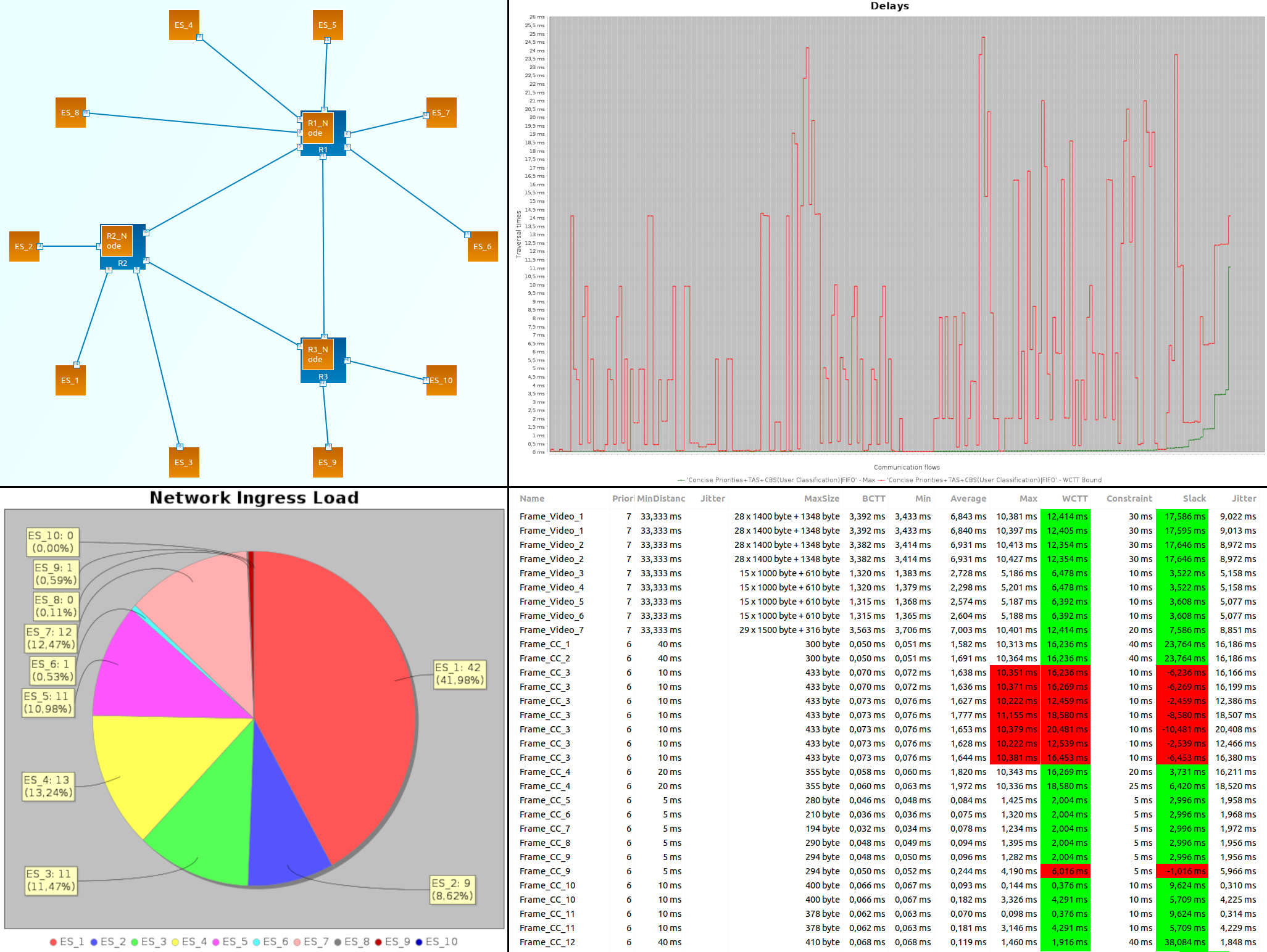

TSN.configurator analyzes link utilization, latency, throughput, and reliability requirements to generate a mathematically verified TSN configuration that ensures compliance with the application needs.

Multi-vendor support

TSN.configurator offers seamless configuration for any Ethernet or TSN-compliant products, and supports multi-vendor equipment within the same network.

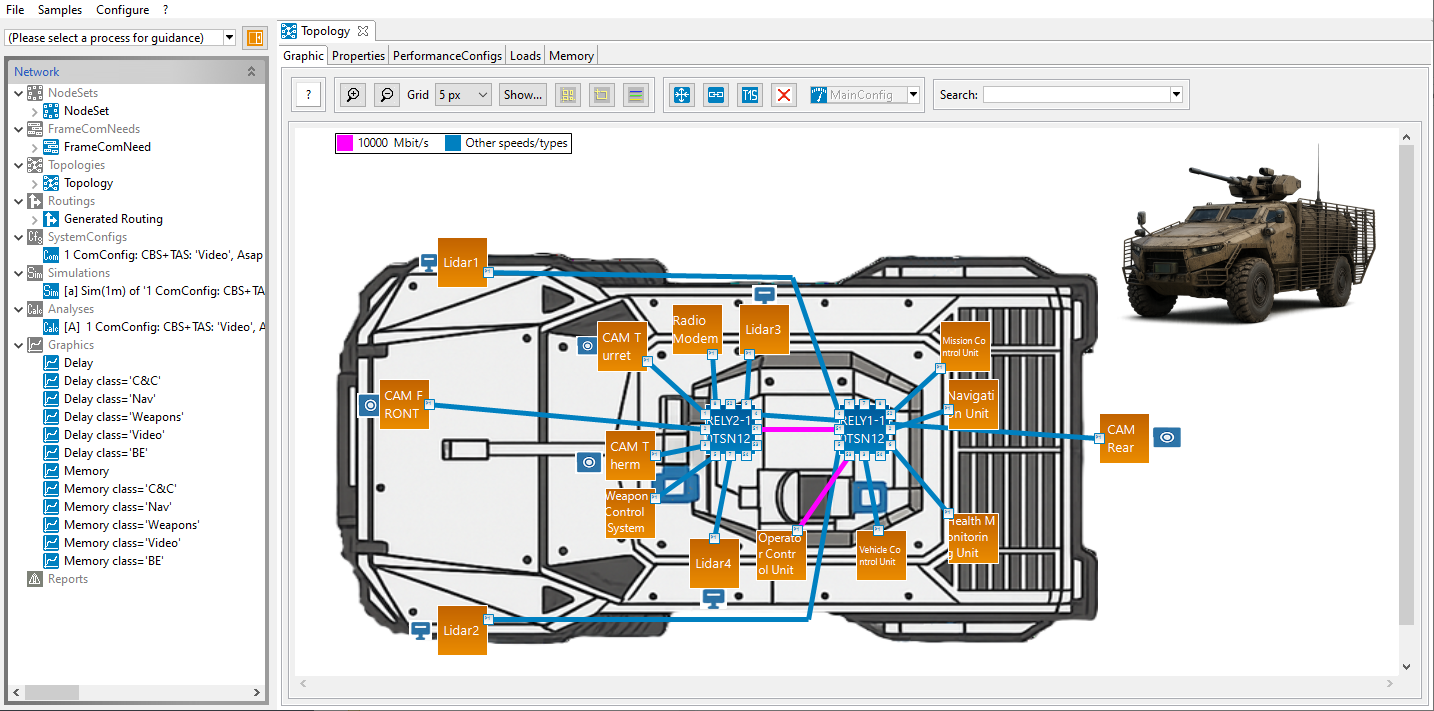

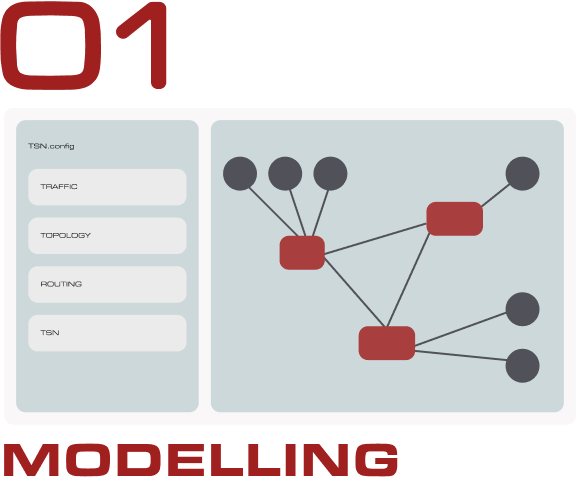

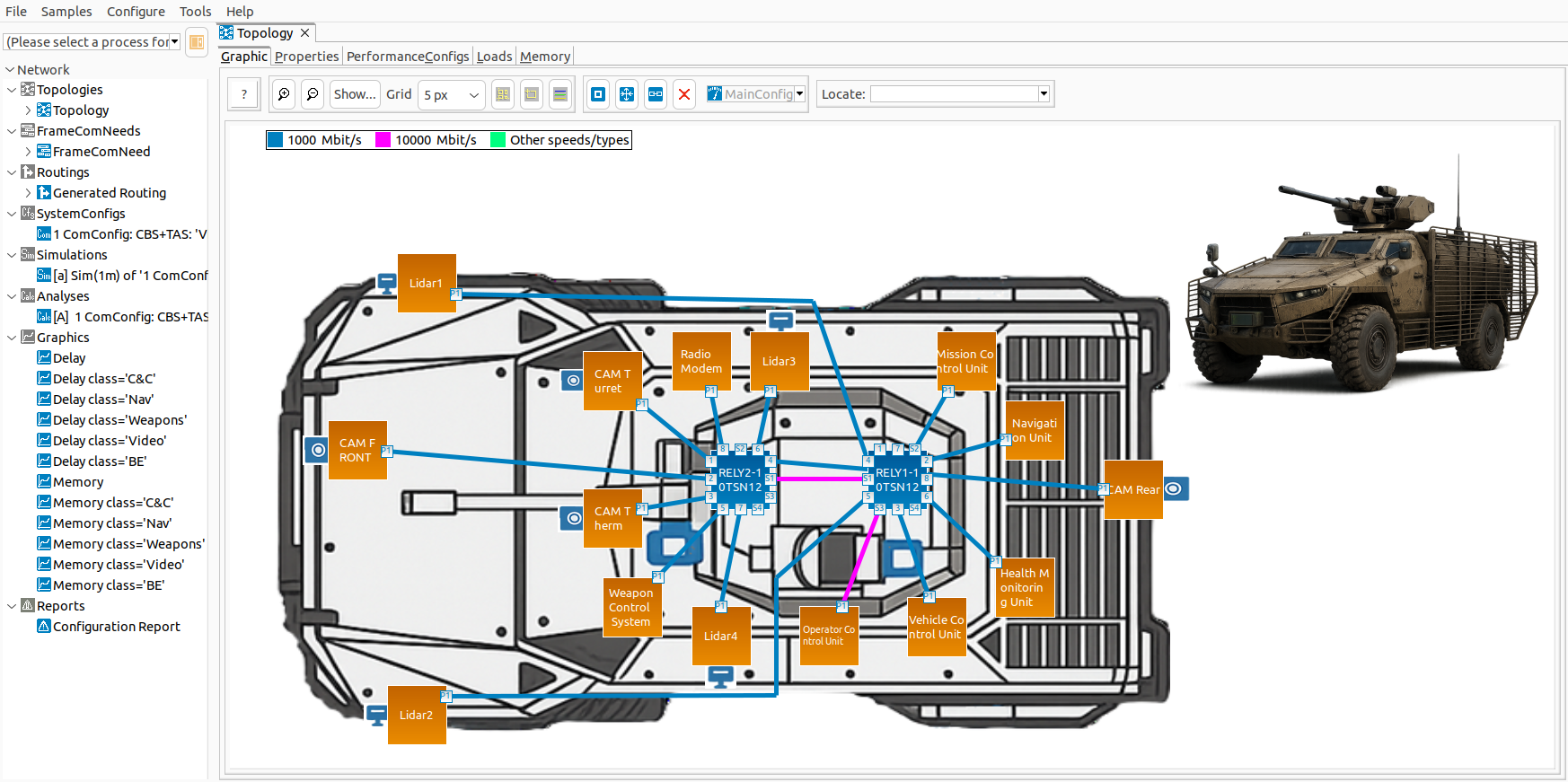

Define network topology and streams in the IDE or via an API

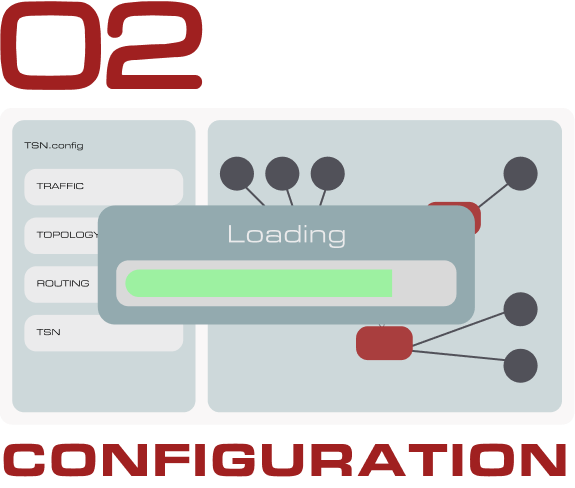

The configuration of your devices is generated

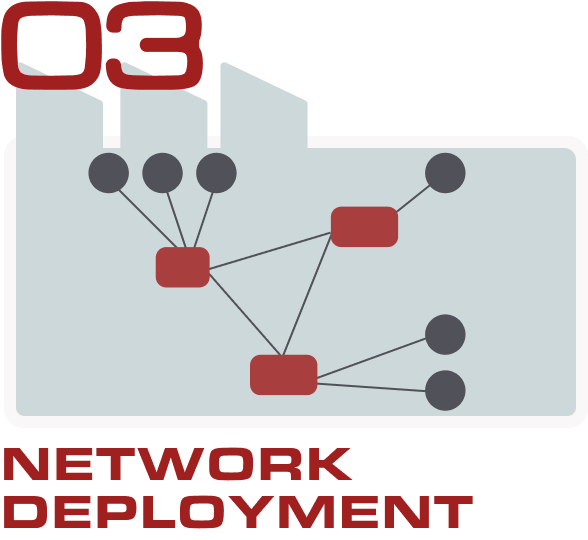

The configuration is deployed e.g. over NETCONF

TSN.configurator highlights:

  • Traffic Prioritization (IEEE 802.1p)
  • Time Synchronization (IEEE 802.1AS & 802.1ASdm)
  • Credit Based Shaper (IEEE 802.1Qav)
  • Scheduled Traffic (IEEE 802.1Qbv)
  • Frame Preemption (IEEE 802.1Qbu & 802.3br)
  • Per-Stream Filtering and Policing (IEEE 802.1Qci)
  • Frame Replication and Elimination for Reliability (IEEE 802.1CB)
  • YANG datamodels (IEEE 802.1Qcp, 802.1Qcw, 802.1CBcv, 802.1ASdn, 802.1Qdx)

TSN.configurator creates XML configuration files that fully comply with the standardized TSN YANG models, and automatically deploys them to the hardware via the NETCONF protocol.

A specialized edition of TSN.configurator, tailored to the devices of our partner SOC-E, has been in production since 2021.

The configuration engine at the core of TSN.configurator has been used for the last 18 years in the automotive, aerospace and industrial domains – see the users that trust us.

Key Features

  • “Push-button” approach and user-friendly interface to simplify and speed-up network configuration;

  • Comprehensive Traffic Flow Modeling: Wizards guide users through the detailed definition and characterization of traffic flows and their specific requirements;

  • Automated Network Configuration: Produces deployment-ready configurations that prevent resource over-provisioning;

  • Provides firm guarantees that packets timing constraints are met: latencies, delays and throughput;

  • Enables proper buffer dimensioning to prevent data loss;

  • Support for TSN QoS Mechanisms: Includes automated configuration for IEEE standards such as 802.1AS, 802.1ASdm, 802.1Qav, 802.1Qbv, 802.1Qbu, 802.1Qci, and 802.1CB;

  • Support for legacy Ethernet traffic and network devices;

  • Support for multi-vendor equipment and device specific constraints via a hardware description language;

  • Support for IEEE and IETF YANG standards, and deployment of configuration files over NETCONF;

  • API availability: TSN.configurator functionalities are also available through a Java library for integration into your own programs.

Download the TSN.Configurator brochure now!
Download the TSN.configurator brochure now!

News & Events

  • 2025/03: Version 1.6.1 of TSN.configurator introduces various enhancements and updated hardware profiles according to the latest firmwares of RelyUm devices.

  • 2024/12: Version 1.6.0 of TSN.configurator introduces a simplified IEEE 802.1 AS frame generation workflow and support for IEEE 802.1ASdn/dm.

  • 2024/04: RTaW showcased TSN.configurator at Embedded World 2024 (Nuremberg, April 9-11) and gave a presentation titled: “When Software Meets Hardware: Hardware Characteristics in TSN Configuration”.

Get in touch with our experts now

And ask for demo or a free evaluation period
